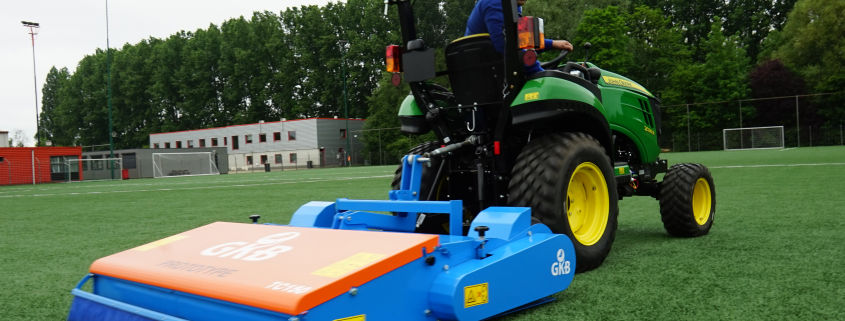

GKB To Top All At SALTEX: The GKB Top-Clean is a full mechanic, self-driven machine that removes all kind of dirt from the top of a synthetic pitch, from cigarettes, leaves and papers to plastic bottles.

This machine can easily be connected to almost every tractor by using a standard three-point hitch or electric drawbar. Using a high driving speed (around 10 km/h) will result in a perfect looking artificial pitch that you can be proud of!

Designed as a full self-driven machine, the Top-Clean features two rubber wheels at the front ensure that the machine will roll softly across the artificial pitch. Not only this, but a rotary brush is connected with the wheels by a chain drive. You can determine the speed of the brushes with the driving speed.

During operation debris and infill will come on a vibrating sieve. This sieve will separate infill material from the debris and thanks to the vibration of the sieve, all pollution moves to the bins at the end. Containing two separate bins, after use, the bins can easily be removed to get emptied in a regular waste container.

GKB is proud to be showcasing this new to range model at the 2019 SALTEX show. Visit stand H051 to discover more.

For more on GKB Machines and their reliable and robust range of machinery for natural, hybrid and synthetic turf, please visit www.gkbmachines.com or contact Tom Shinkins on 07495 883617 to enquire about the GKB Top Clean ready for next season.

For the latest industry news visit turfmatters.co.uk/news

Get all of the big headlines, pictures, opinions and videos on stories that matter to you.

Follow us on Twitter and Instagram for fun, fresh and engaging content.

You can also find us on Facebook for more of your must-see news, features, videos and pictures from Turf Matters.

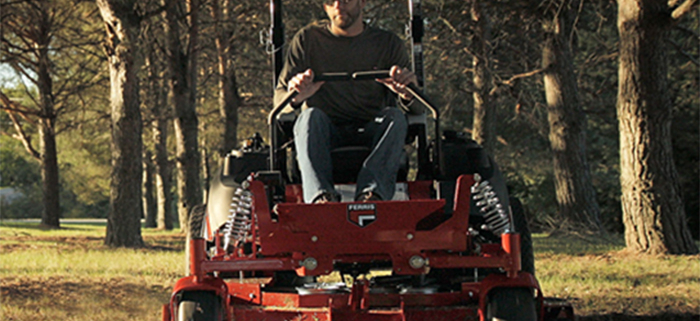

Eco-Management: Speed x Effiency = < CO₂: As we all know “Eco-friendliness” doesn’t exist in our industry (think e.g.: resources, transport, waste) or you should mow without any help from tooling manufactured by the industrialized world we live in.

That’s why we prefer sustainable and environmentally sound solutions to address the current standards on emissions by utilizing an unique Ferris-combination: SPEED times EFFICIENCY.

With our Vanguard™ EFI-engines on the IS®2100Z and IS®3200Z fuel savings are possible up to 25%. Even in the most worst-case scenarios (wet-, tall grass) savings on fuel are still 9% compared to a carburettor equivalent. In the case of cars, for example, we measure emissions per kilometre, but what conversion factor can we apply to emissions from lawnmowers?

Let’s take the IS®2100Z in worst-case mode and make a thumb rule calculation based on gross calorific value basis:

Ferris IS®2100Z: 6,96 ℓ petrol per hour x 30 operational hours = 208,8 ℓ / week

Non Ferris, no EFI: 7,65 ℓ petrol per hour x 30 operational hours = 229,5 ℓ / week

Ferris IS®2100Z: 208,8 ℓ petrol per week x 2392 grams of CO₂ / ℓ = 499450 grams CO₂ / week

Non Ferris, no EFI: 229,5 ℓ petrol per week x 2392 grams of CO₂ / ℓ = 548964 grams CO₂ / week

Ferris IS®2100Z: 20.000m² capacity (80% eff.) /hour x 30 operational hours = 600.000m² / week

Non Ferris, no IS®: 12.500m² capacity (80% eff.) /hour x 30 operational hours = 375.000m² / week

Ferris IS®2100Z: 499450 grams CO₂ / 600.000m² = 0,83 grams CO₂ per m²

Non Ferris, no IS® and EFI: 548964 grams CO₂ / 375.000m² = 1,46 grams CO₂ per m²

Reduction on CO ₂ emissions: 43%

Reduction on fuel consumption: at least 9% on hourly base

Increase fuel consumption non Ferris w/o EFI and IS: at same coverage square meters: +43% (1:1 relation CO ₂)

Increase on capacity m2: 600.000m2 instead 375.000m2 = 60%

What & Why with IS^®Suspension?

Ferris IS® Suspension Technology (Quality of Cut)

Contour following technique: mower deck follows the movement of the wheels (and flow of the terrain)
Deck is connected to the moving A-arms, not the chassis
Consistent cut
Pro-active anti scalp function
Minimizing breaks in ground contact
Maximizing traction

Build from the ground up… to be the hardest working and smoothest riding mower in the industry

Ground following construction: how does it work?

Ground following construction: how does it work?

Front suspension through single A-Arm construction
Front wheels can move independent
Mower deck directly connected to the A-arms
When front wheel moves up, the respective deck
corner will be lifted, following exact movement
of the wheel
When front wheel moves down,
the deck hanger chain will collapse
Deck will remain level,hanging on
the remaining three deck hanger chains

Ground following construction: how does it work?

Transmission cradle hosting RH and LH transmission
Cradle moves independent from the main frame
Mower deck is connected to a deck lift pivot
When the transmission cradle moves up, the mower deck will
be lifted upwards
When the transmission cradle moves down, the mower deck
will be lowered
Compensates suspension movement

Ferris IS®Suspension Technology (Comfort)

Exclusive feature (only you offer this USP!)
Not just a special seat to mask operating vibration
Operators experience less fatigue while tackling tough jobs
Reduced whole body vibration which can cause injury pain in back, shoulders and neck
Absorbing bumps and vibration that causes operator fatigue
Possibly less absenteeism through illness and reduction number of sick days
IS® benefits chassis by reducing shock load
Better focus and concentration = less damage
Increased comfort = operator satisfaction = increased productivity
Increases overall machine life (Protects Body & Machine)

Ferris IS®Suspension Technology (Efficiency)

Other brand operators slow down to compensate uneven terrain
Insulated from uneven terrain
Naturally increasing speed
The operator is better protected for shock loads and vibrations
Taking full advantage of available horsepower
The driver is able to stay seated at higher ground speeds
More square meters per hour
Enables you to get more done in less time than conventional mowers
Measurable improvement in mowing efficiency

Ferris IS®Suspension Technology (Extended Mower Life)

Suspension protects body and machine
Suspension benefits chassis by reducing shock load
Mower with suspension will last longer and requires fewer repairs than similar non-suspension mower
Ferris frame rails are made of much heavier material; No rely on frame flex to keep all four wheels on the ground
Minimizing breaks in ground contact = Maximized traction

Ferris IS®Suspension Technology (Unique Position)

Exclusive feature
Unique patented suspension system (the System carries 160 patents!)
Only commercial mower that features a dedicated suspension system
Sets Ferris completely aside from competition

What can we say more….

Unique, exclusive, patented…sets Ferris completely aside from all others!

Highest mowing speed = Highest efficiency = Lowest CO₂ emissions per m²
Highest comfort = Smoother drive = Less operator fatigue
Absorbs HAVS and Whole Body Vibrations = No limitations m/s2!
Contour following technique = Consistent cut
Minimizing breaks in ground contact = Maximizing traction
Full advantage of available horsepower
Benefits chassis by reducing shock load = Extended mower life

Vanguard™ 810 EFI Series (Ferris® IS2100Z)

V-Twin, air cooled gasoline engine
28HP @ 3600 rpm
Engine displacement 810cc
Closed loop Electronic Fuel Injection
Donaldson dual stage industrial air cleaner
High flow blower housing
Automatic compression release
Full pressurized lubrication
Solenoid shift starter

Fuel economy over carburated system

10% Load = 31% gain

25% Load = 29% gain

50% Load = 17% gain

75% Load = 11% gain

100% Load = 9% gain

CO₂ emission: 884,36 g/kWh (EU2016/1628)

Vanguard™ Big Block EFI Series (Ferris® IS3200Z)

V-Twin, air cooled gasoline engine
37HP @ 3600 rpm
Engine displacement 993cc
Closed loop Electronic Fuel Injection
Donaldson dual stage industrial air cleaner
High flow blower housing
Automatic compression release
Full pressurized lubrication
Solenoid shift starter

Fuel economy over carburated system

10% Load = 31% gain

25% Load = 29% gain

50% Load = 17% gain

75% Load = 11% gain

100% Load = 9% gain

CO₂ emission: 809,92 g/kWh (EU2016/1628)
